LRS-600 600W24V Single Output Switching Power Supply – 110-277V Input, UL/CE/RoHS Certified, 86–92% Efficiency, Multi-Voltage Output, Compact 41mm Low-Profile, Industrial Grade, 3-Year Warranty
- $85.00
$93.50- $85.00
- Unit price
- per
Volume discounts on orders over $500 — See tiers
Volume Quote Request
×Automatic discounts apply at checkout on orders over $500.
SPENDSAVE
$500 – $1,9995%
$2,000 – $3,9996%
$4,000 – $5,9997%
$6,000 – $7,9998%
$8,000 – $9,9999%
$10,000 – $19,99910%
$20,000 – $49,99912%
$50,000+15%
Prefer phone? +1 (678) 538-7884
Thanks — your request was submitted.
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Free Shipping
Free shipping on orders over $99
Ships within 1 business day
Volume Discounts
Automatically applied for orders $500+

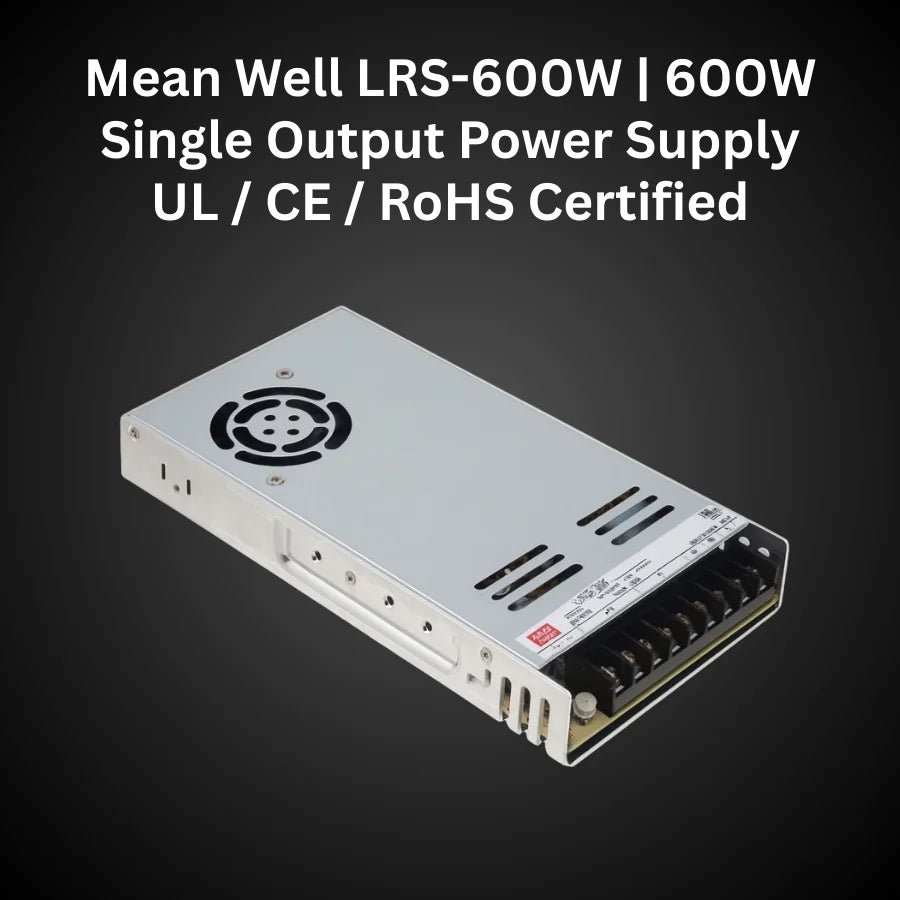

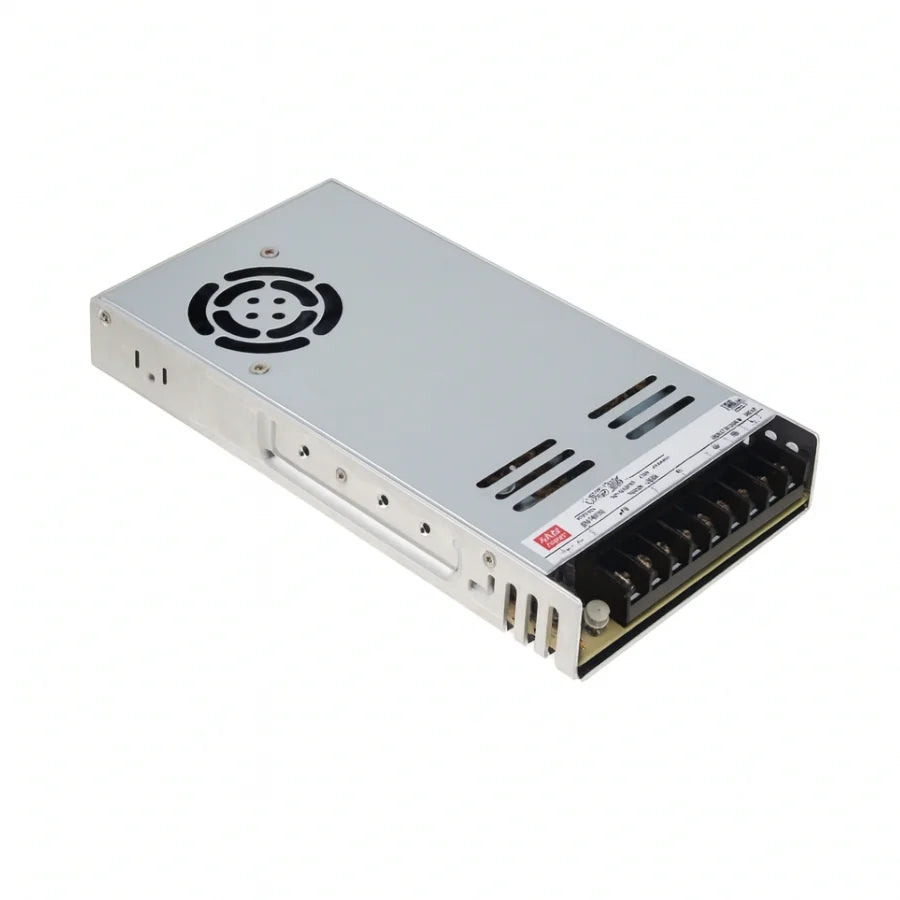

FlipToLED LRS-600 Industrial Switching Power Supply, 600W Single Output – 90–277V Input, UL/CE/RoHS Certified, 86–92% Efficiency, 41mm Low Profile

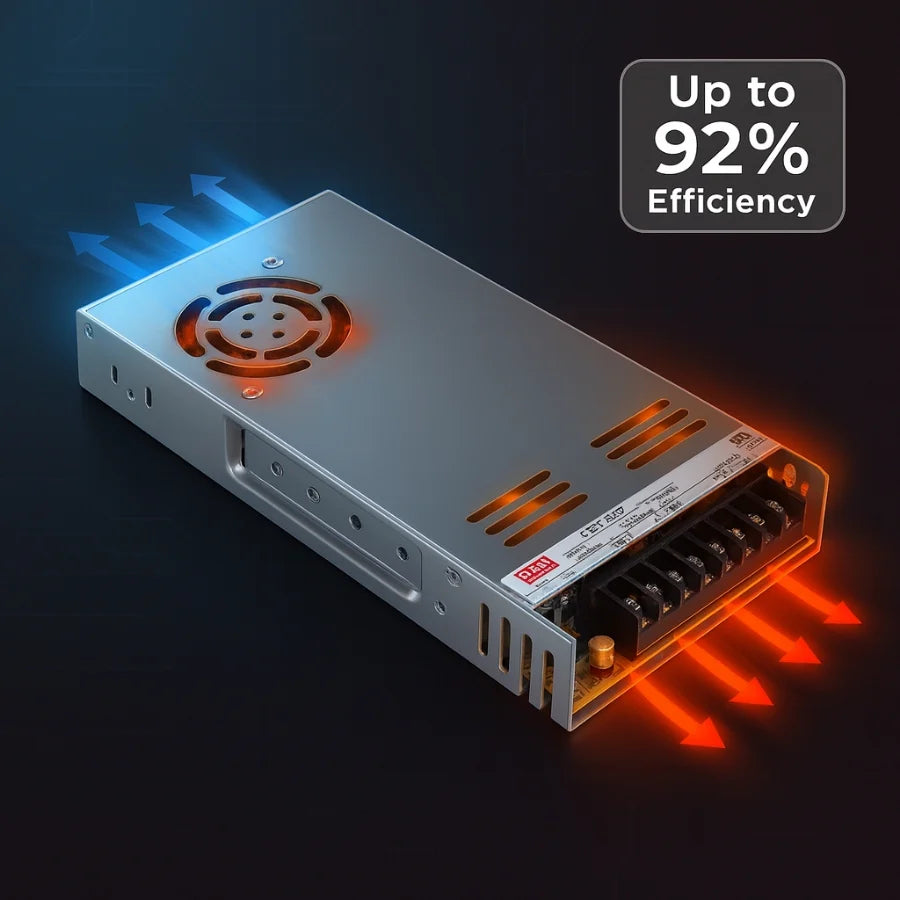

The FlipToLED LRS-600 Series 600W Single Output Switching Power Supply is engineered for demanding industrial and automation environments requiring high efficiency, stable output, and long service life. Offering up to 92% conversion efficiency and support for multiple DC output voltages, this supply delivers dependable energy transfer and secure system performance even under heavy load.

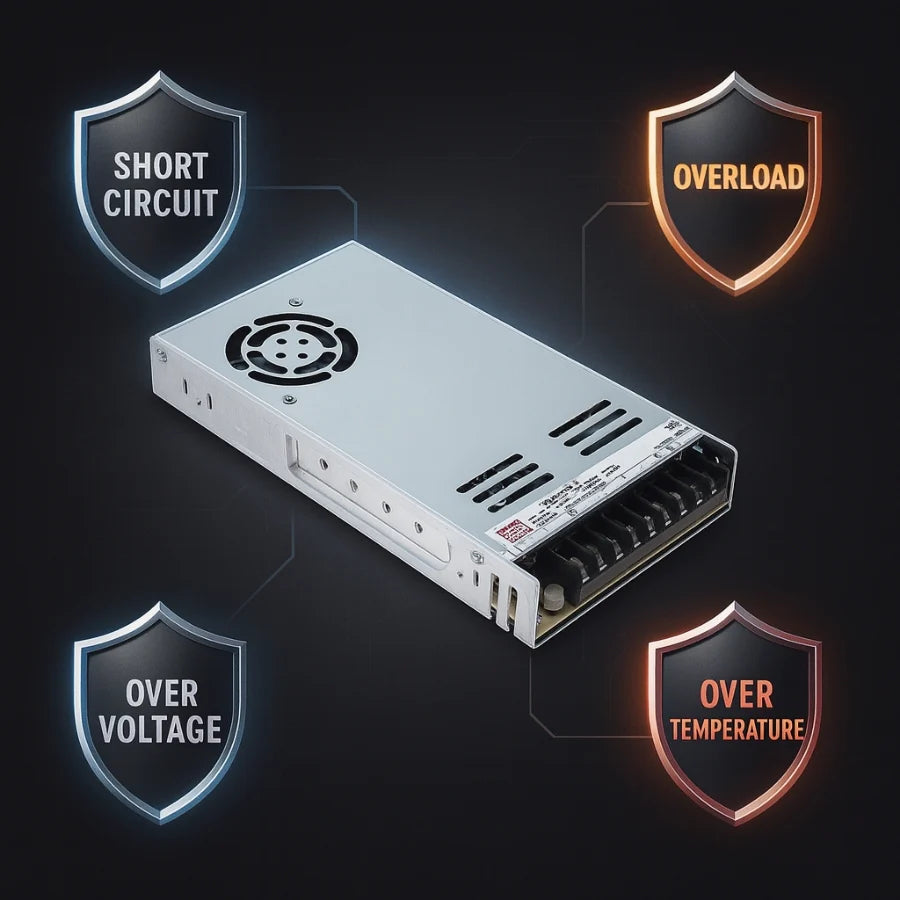

Designed for control equipment, factory automation, motion control, electronic machinery, and general-purpose industrial systems, the compact 41mm low-profile housing provides efficient cooling using forced air with intelligent fan ON/OFF control. Integrated short circuit, overload, over-temperature, and over-voltage protections help minimize system failures and increase uptime in critical applications.

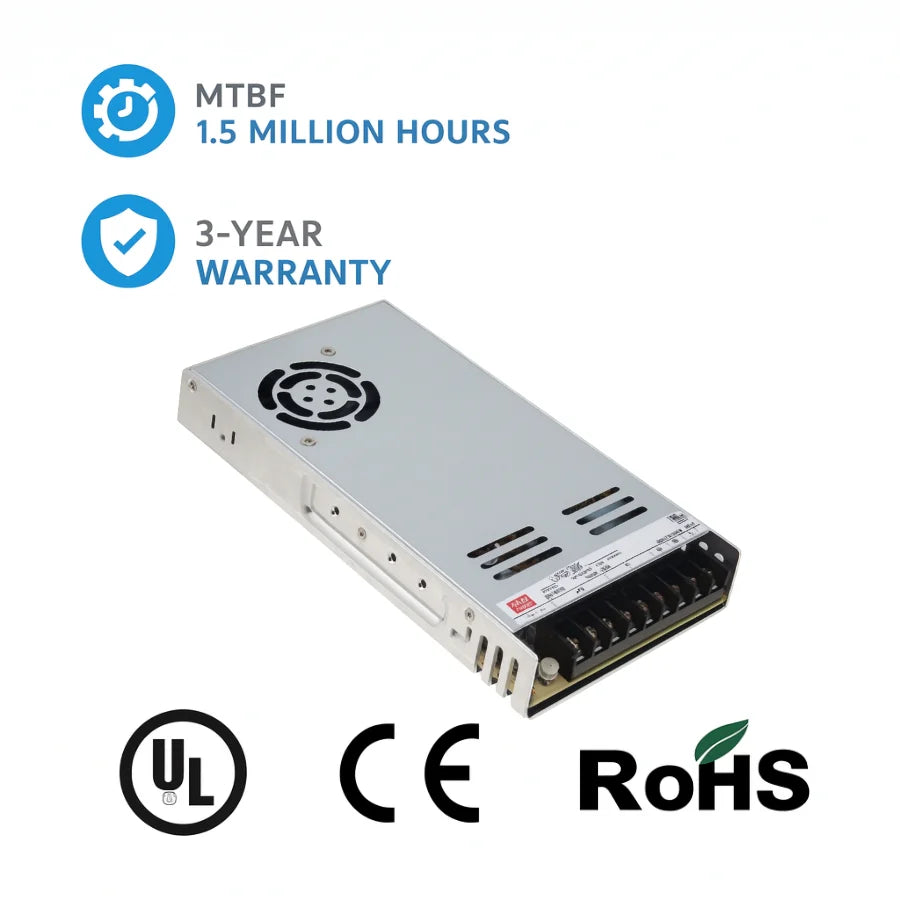

The selectable 90–132VAC / 180–264VAC input range and wide operating temperature capability make this power supply suitable for global industrial deployment. High vibration resistance and an MTBF exceeding 1.5 million hours further support long-term system continuity.
Provided accessories include a terminal block cover and mounting hardware for simplified installation.
Product Specifications
| Specification | Description |
|---|---|
| Brand | FlipToLED |
| Model Series | LRS-600 |
| Rated Power | 600W |

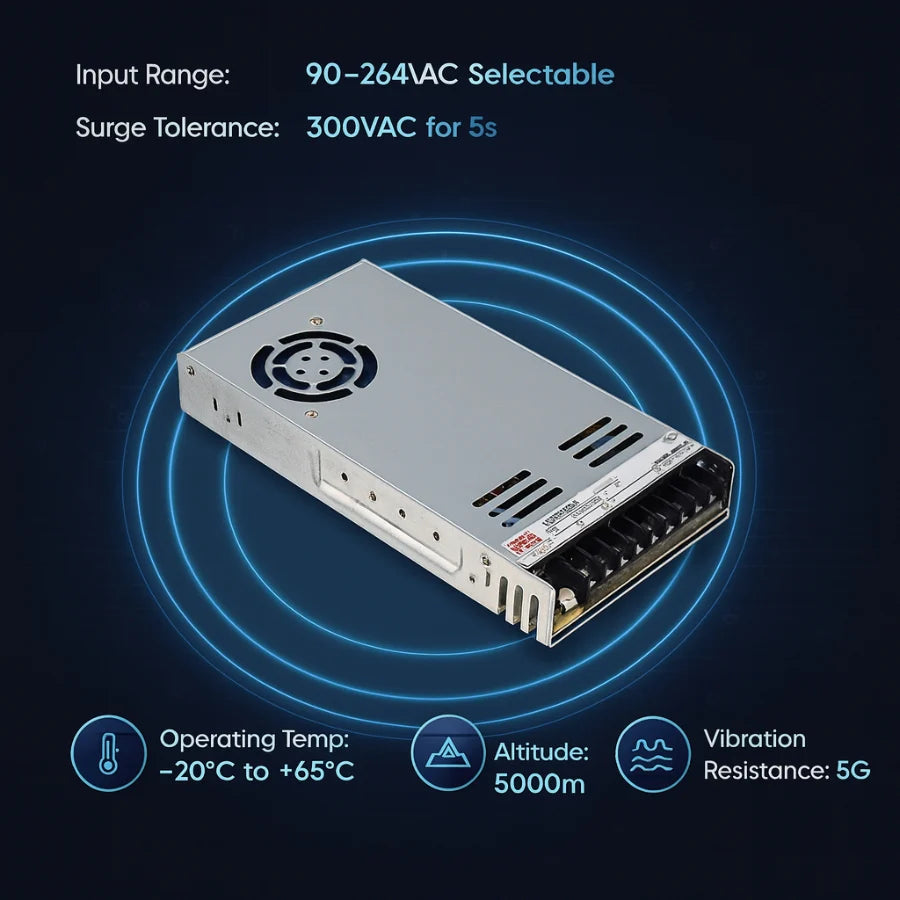

| Input Voltage | 90–132VAC / 180–264VAC (switch selectable) |
| Frequency Range | 47–63Hz |
| Output Voltages | 5V, 12V, 15V, 24V, 27V, 36V, 48V |
| Efficiency | 86%–92% |
| Protections | Short circuit, overload, over voltage, over temperature |
| Cooling | Forced-air with fan ON/OFF control |
| Operating Temperature | -20°C to +65°C |
| Operating Altitude | Up to 5000 m |
| Vibration Resistance | 5G / 10–500Hz |
| MTBF | 1,533,400 hrs |

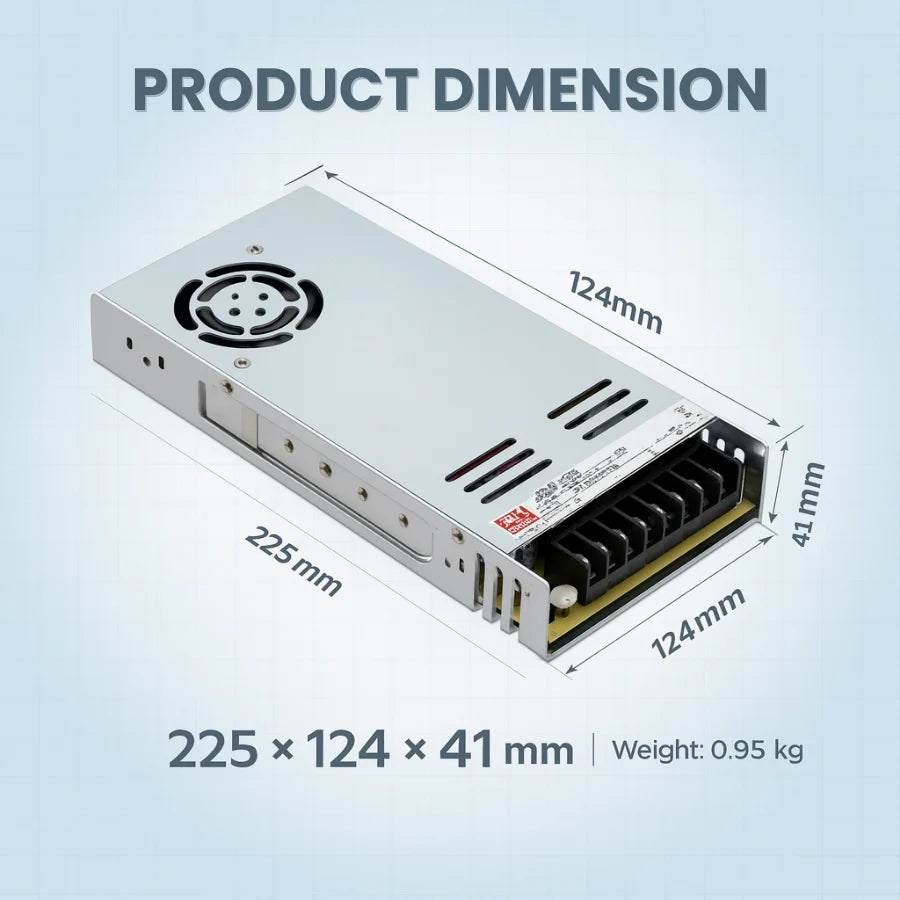

| Dimensions | 225 × 124 × 41 mm |
| Weight | 0.95 kg |
| Included Accessories | TBC-09 terminal block cover, 4 × MHS-012 mounting kits |
| Certifications | UL62368-1, IEC62368-1, EN61558-1/2-16, IS13252, RoHS |
| Warranty | 3 years |
