LRS-450 450W24V Single Output Switching Power Supply – 110-277AC Input, UL/CE/RoHS Certified, 87–92% Efficiency, 12V/24V Output, Compact 35mm Low-Profile, Industrial Grade, 3-Year Warranty
- $70.00
$77.00- $70.00
- Unit price
- per
Volume discounts on orders over $500 — See tiers
Volume Quote Request
×Automatic discounts apply at checkout on orders over $500.
SPENDSAVE
$500 – $1,9995%
$2,000 – $3,9996%
$4,000 – $5,9997%
$6,000 – $7,9998%
$8,000 – $9,9999%
$10,000 – $19,99910%
$20,000 – $49,99912%
$50,000+15%
Prefer phone? +1 (678) 538-7884
Thanks — your request was submitted.
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Free Shipping
Free shipping on orders over $99
Ships within 1 business day
Volume Discounts
Automatically applied for orders $500+
FlipToLed LRS-450 Industrial Switching Power Supply, 450W Single Output – 90–277VAC Input, UL/CE/RoHS, 87–92% Efficiency, Low-Profile 35mm, 3-Year Warranty
The FlipToLed LRS-450 Series 450W Single Output Switching Power Supply is designed for professional automation and industrial equipment requiring consistent power delivery and long-term operational reliability. Reaching up to 92% efficiency, it provides stable DC output for demanding electronic systems, mechanical equipment, and control applications.

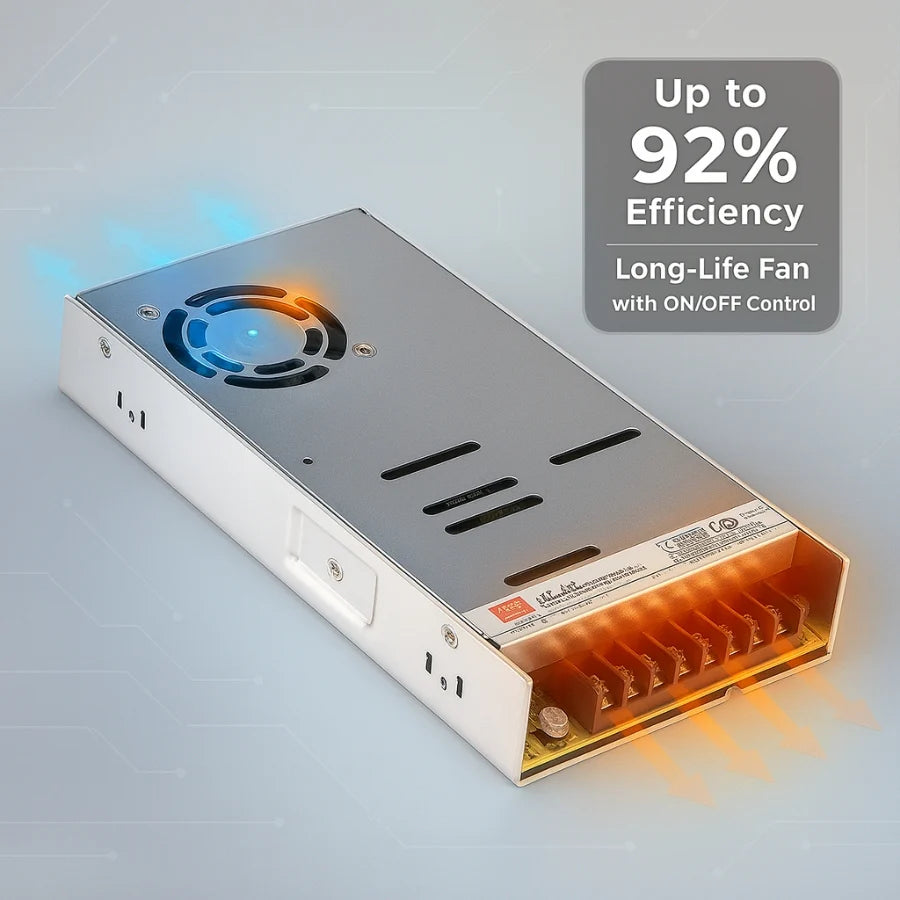

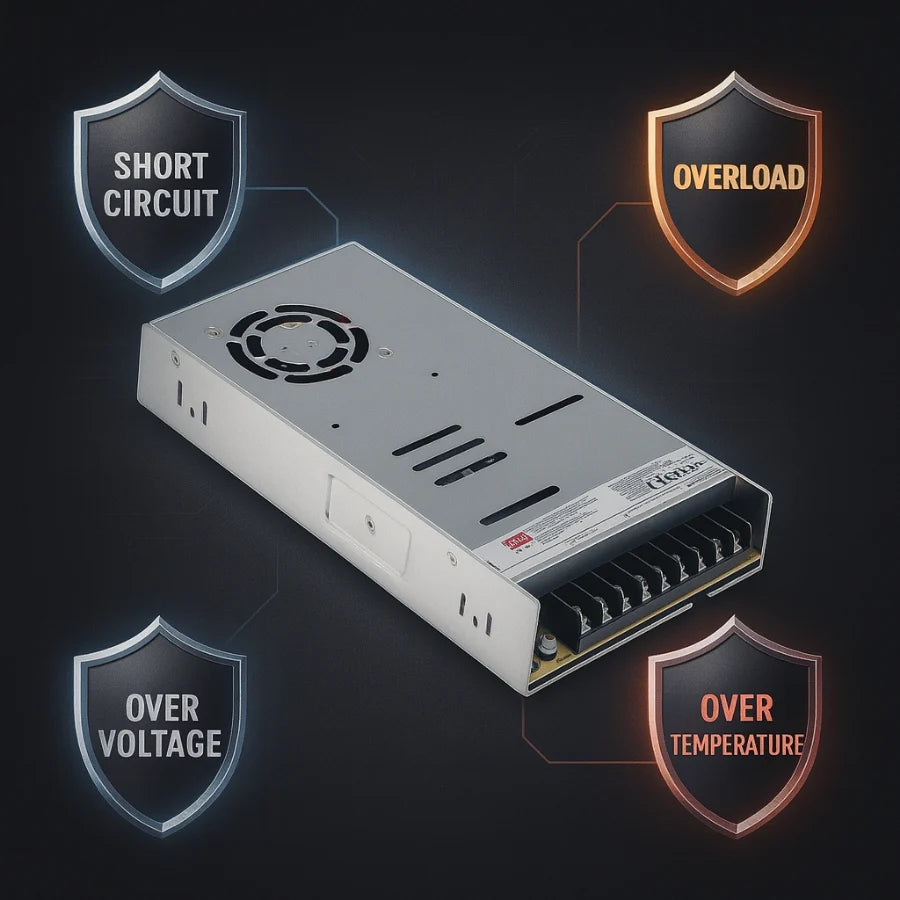

Its compact 1U (35mm) low-profile housing ensures compatibility with space-restricted installations while forced-air cooling and fan ON/OFF control maintain optimal thermal performance. Comprehensive protection circuits prevent damage caused by short circuit, overload, over voltage, and overheating events, helping reduce downtime and increase system safety.
With selectable wide-range AC input (90–132VAC / 180–264VAC) plus surge tolerance up to 300VAC for 5 seconds, the LRS-450 offers robust operation in industrial electrical environments. Anti-vibration resistance, high MTBF rating, and certified compliance make this model a dependable power platform for long-duration service.
Product Specifications
| Specification | Description |
|---|---|
| Brand | FlipToLed |
| Model Series | LRS-450 |
| Rated Power | 450W |
| Input Voltage | 90–132VAC / 180–264VAC (switch selectable) |
| Frequency Range | 47–63Hz |
| Output Voltages | 12V, 24V |
| Efficiency | 87%–92% |
| Protections | Short circuit, overload, over voltage, over temperature |
| Cooling | Forced-air with fan ON/OFF control |
| Operating Temperature | -20°C to +70°C |
| Operating Altitude | Up to 5000 m |
| Vibration Resistance | 5G / 10–500Hz |
| MTBF | 1,508,900 hrs |

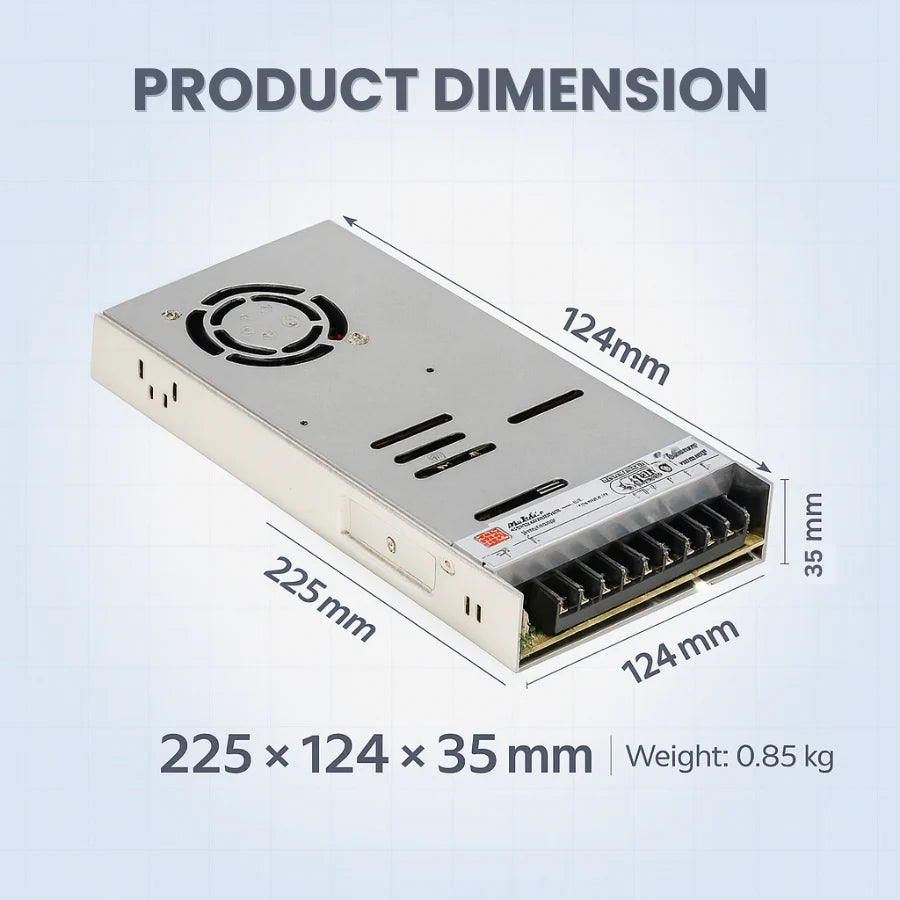

| Dimensions | 225 × 124 × 35 mm |
| Weight | 0.85 kg |
| Included Accessories | TBC-09 terminal block cover, 4 × MHS-012 mounting kits |
| Certifications | UL62368-1, IEC62368-1, EN61558-1/2-16, RoHS |
| Warranty | 3 years |
