LED Dimmer Switch 96W 2-in-1 Mini Driver, ON/OFF + Dimming, 24V ±0.5V Output, UL FCC CE Class 2 Certified, Compact 120V AC Design
- $68.31
$75.14- $68.31
- Unit price
- per
Volume discounts on orders over $500 — See tiers
Volume Quote Request
×Automatic discounts apply at checkout on orders over $500.
SPENDSAVE
$500 – $1,9995%
$2,000 – $3,9996%
$4,000 – $5,9997%
$6,000 – $7,9998%
$8,000 – $9,9999%
$10,000 – $19,99910%
$20,000 – $49,99912%
$50,000+15%
Prefer phone? +1 (678) 538-7884
Thanks — your request was submitted.
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Free Shipping
Free shipping on orders over $99
Ships within 1 business day
Volume Discounts
Automatically applied for orders $500+
FlipToLed 96W LED Dimmer Switch – 2-in-1 Mini Driver (ON/OFF + Dimming, 24V ±0.5V Output)
Upgrade your lighting system with the FlipToLed 2-in-1 LED Dimmer and Driver Switch — a compact, high-performance solution that combines a dimmer switch and LED driver into one space-saving unit.
Designed for low-voltage 24V LED lighting, this Class 2 96W driver ensures smooth, flicker-free dimming and steady power delivery for LED strips, cabinet lights, display shelves, and commercial installations.
Unlike regular dimmer switches, the FlipToLed dimmer uses 20 kHz PWM output with a gamma 2.2 curve, ensuring color-accurate dimming from 0.3 % to 100 % brightness — with no flicker or hum. Built to professional standards and backed by UL, FCC, and CE certifications, it’s ideal for both residential and commercial projects.
Key Benefits
-
Integrated Dimmer + Driver: Combines two devices in one for cleaner setups and fewer wiring components.
-
Ultra-Smooth Dimming: Flicker-free performance from 0.3 % – 100 %.
-
High Power Efficiency: Active power factor correction > 0.99 PF and < 10 % THD.
-
Certified Safe: UL, FCC, CE & Class 2 listed with multiple protection features.
-
Versatile Applications: Perfect for LED strips, under-cabinet lighting, display shelves, and architectural accent lighting.

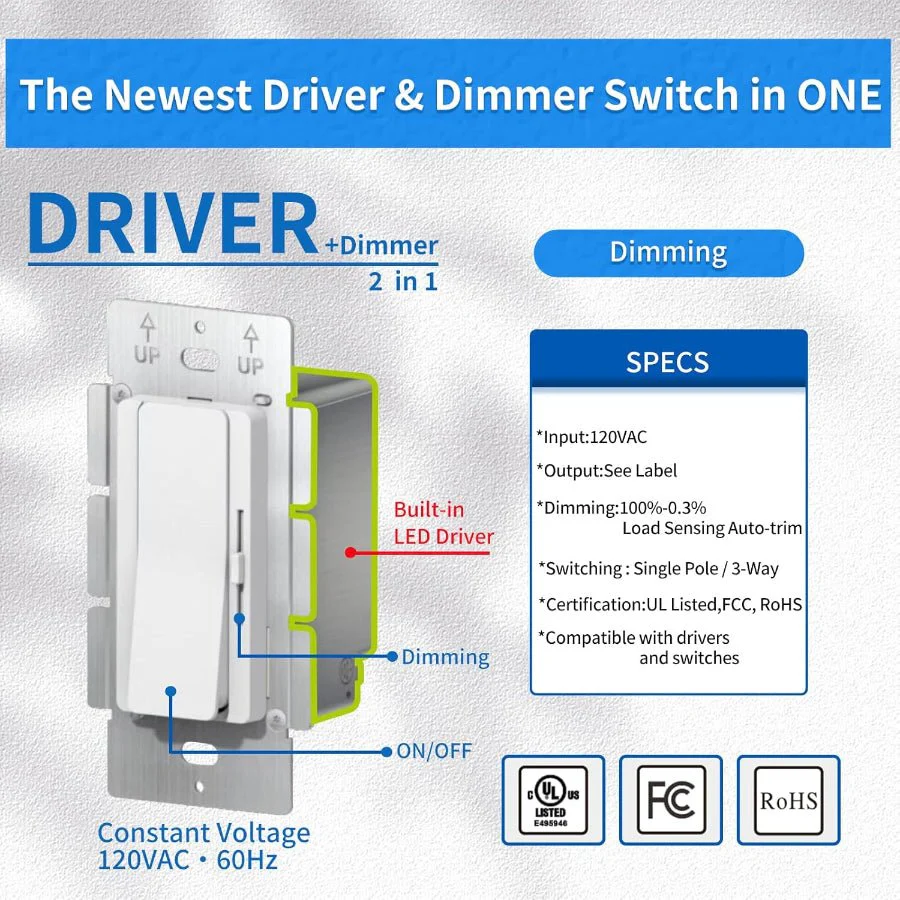

Product Specifications
| Feature | Details |
|---|---|
| Brand | FlipToLed |
| Product Type | Dimmer and Driver Switch in One |
| Input Voltage | 120 V AC |
| Output Voltage | 24 V DC ± 0.5 V |
| Power Rating | 96 W |
| Current Rating | 4 A |

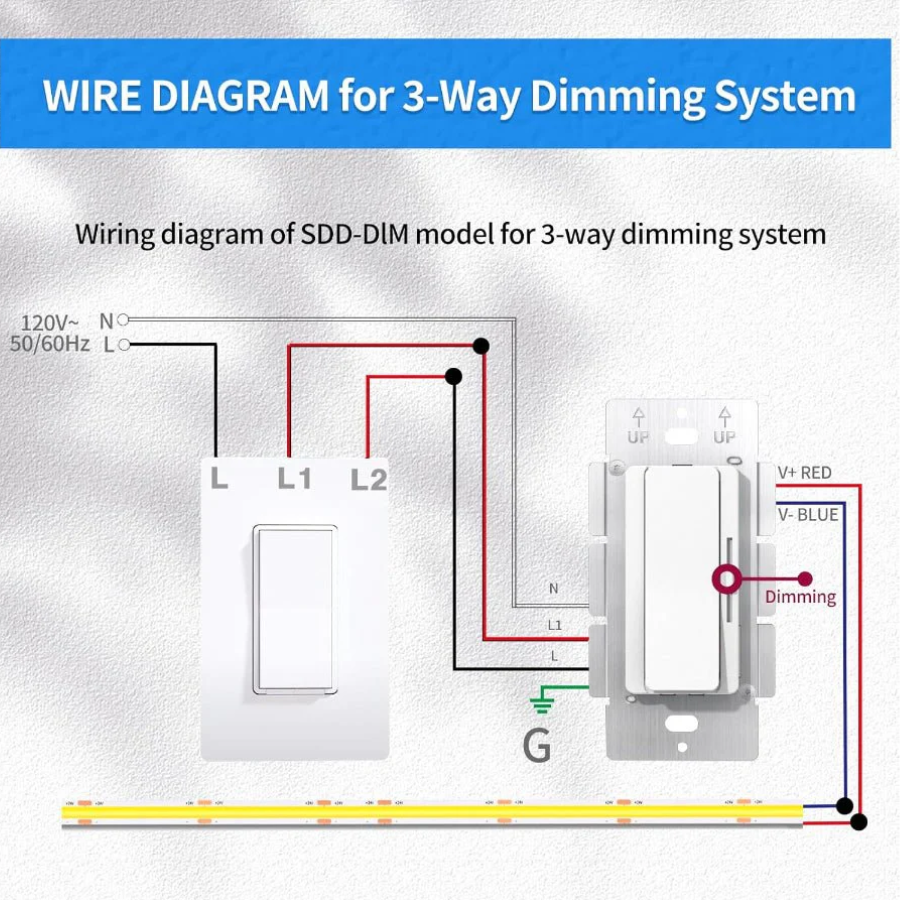

| Circuit Type | 3-Way |
| Dimming Range | 0.3 % – 100 % |
| Power Factor | > 0.99 |
| THD | < 10 % @ Max Load |
| Output Type | 20 kHz PWM, Gamma 2.2 Curve |
| Operation Mode | ON/OFF |
| Contact Type | Normally Closed |
| Connector Type | Screw Terminal |
| Mounting Type | Wall Mount |
| Material | High-grade Plastic |
| Certifications | UL, FCC, CE, Class 2 |
| Protection | Short Circuit, Overload, Over Temperature |

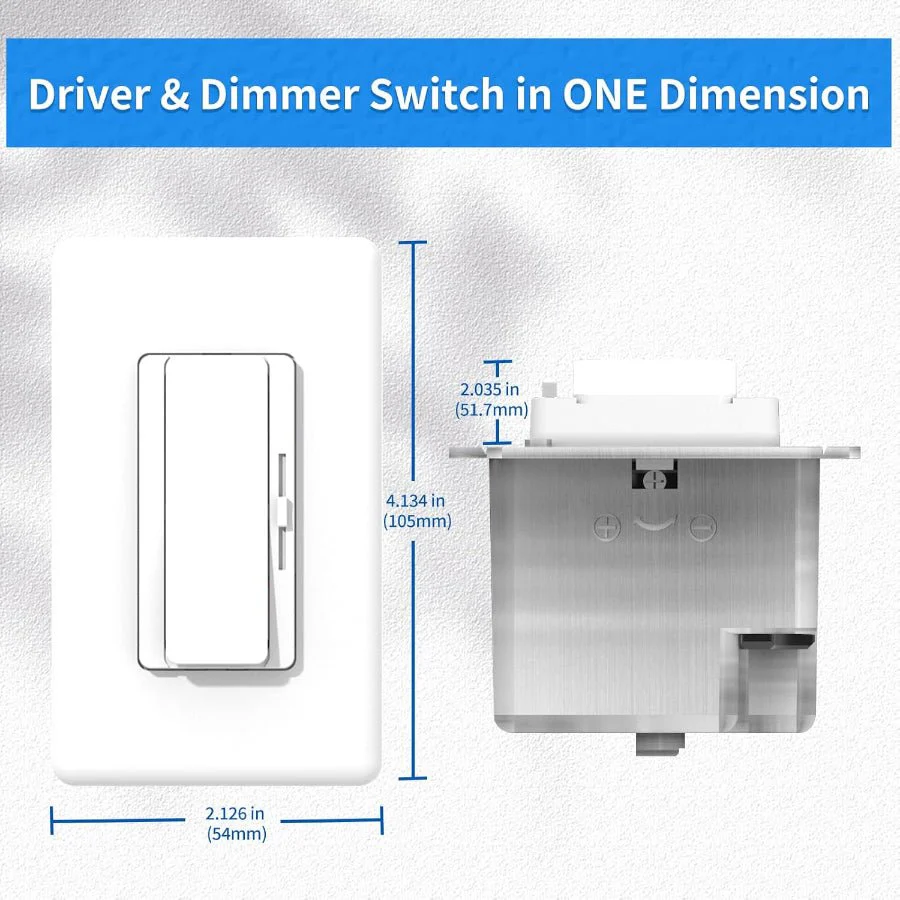

| Dimensions | 4.13 × 2.13 × 2 inches |
| Weight | 12.95 oz |
| Location Rating | Dry and Damp Areas |
| Warranty | 5 Years |
Why Electricians & Installers Choose FlipToLed
Professionals rely on FlipToLed’s 2-in-1 Dimmer Switch for LED Lights to simplify installation, save space, and deliver reliable dimming control without the need for external drivers. With superior performance, quiet operation, and strict safety compliance, it’s the go-to choice for high-quality lighting projects.
Ideal For
-
24 V LED Strip Lights
-
Display and Showcase Lighting
-
Under-Cabinet and Accent Lighting
-
Retail and Hospitality Applications
-
Home and Office Lighting Projects
Customer FAQs
1. Can I use this dimmer switch with any 24 V LED light?
Yes, it’s compatible with most 24 V DC LED strip lights, panels, and low-voltage fixtures. Ensure your total load does not exceed 96 W.
2. Does this product replace both a dimmer and an external driver?
Exactly — it’s an all-in-one unit combining a driver and a dimmer, so you won’t need a separate power supply.
3. Is it suitable for commercial use?
Yes, its UL and Class 2 certifications make it perfect for professional and commercial installations.
4. Will this dimmer flicker at low brightness levels?
No — the 20 kHz PWM output and Gamma 2.2 curve ensure stable, flicker-free performance even at 0.3 % brightness.
5. What’s included in the box?

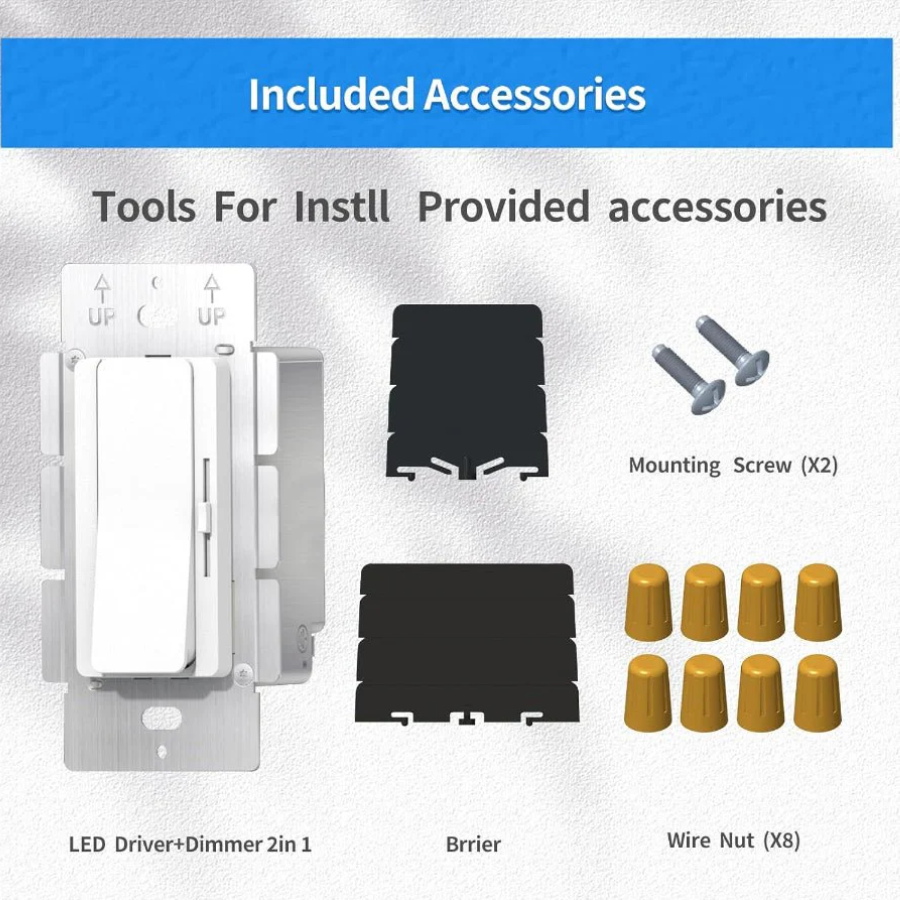

You’ll receive the FlipToLed 96 W Dimmer Switch, mounting screws, user manual, and a 5-year warranty card.
