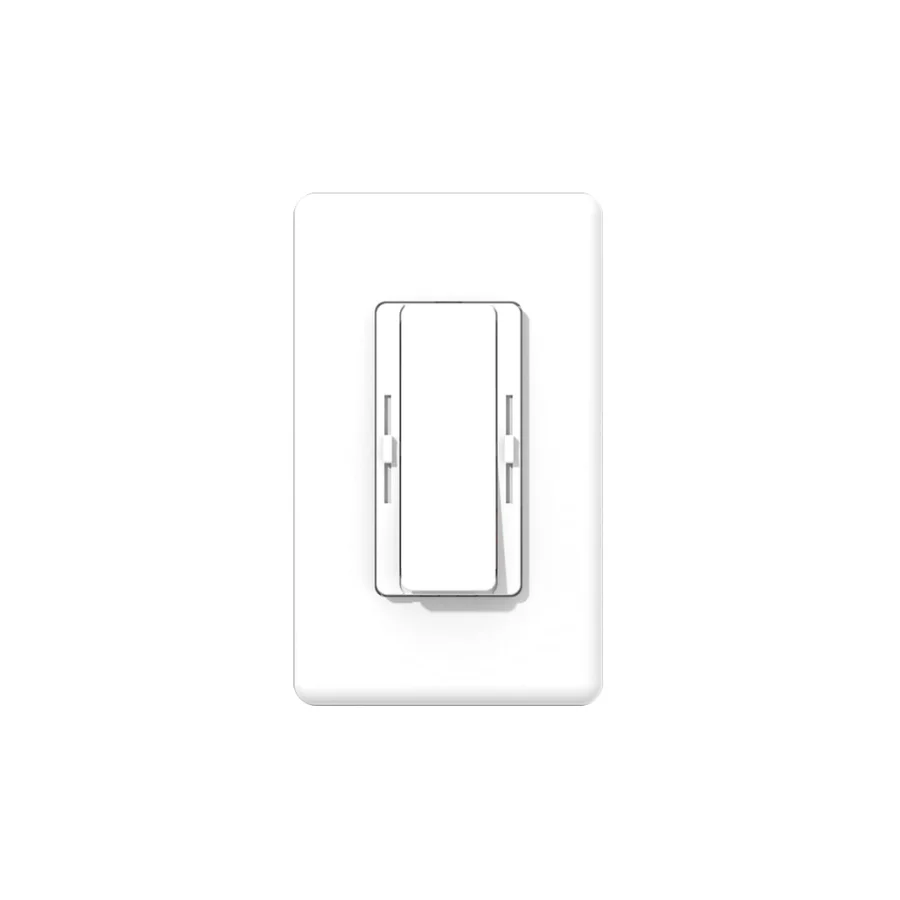

FlipToLed CCT Series 96W 2-in-1 LED Dimmer & Driver Switch (24V DC ±0.5V, Class 2 Certified)
Compact 2-in-1 Design
The FlipToLed CCT Series Dimmer & Driver Switch in ONE (96W) combines a 24V LED driver and a dimmer switch into a single compact, space-saving unit. By removing the need for separate dimmable power supplies and wall dimmers, this smart design saves up to 80% of space in junction boxes and simplifies wiring.
Finished in sleek glossy white, it adds a modern, professional touch to both residential and commercial lighting setups.
Smooth, Flicker-Free Dimming
Engineered for high precision, this 96W unit provides 0.3%–100% dimming with no flicker and no buzzing. The slide dimmer allows easy brightness adjustment, while tunable CCT control lets you tailor the color temperature for different moods — from bright daylight for work to warm tones for relaxation or display lighting.
Flexible Control Options

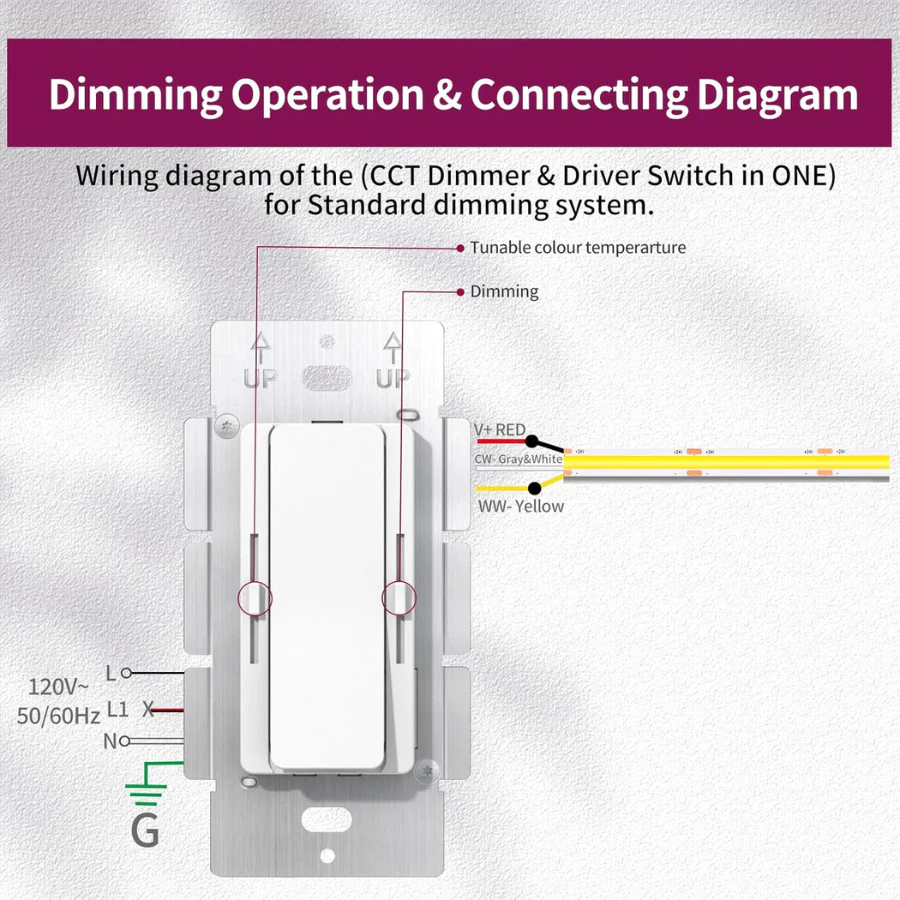

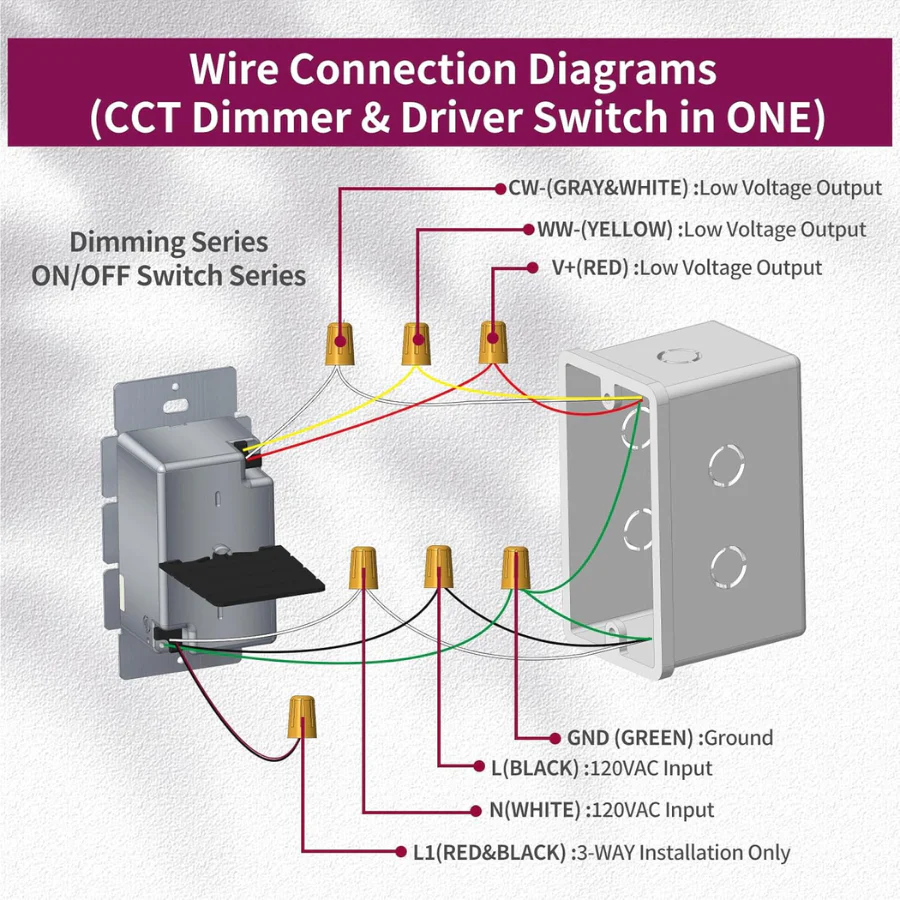

The dimmer can be wired as a single-pole switch or in a 3-way circuit (control from two locations).
Built-In Safety & Reliability
Fully UL, FCC, and CE Class 2 certified, this all-in-one driver-dimmer includes advanced safety protection against short circuit, overload, and overheating, ensuring your LED lighting system operates safely and efficiently over time.
Wide Compatibility
Optimized for 24V DC LED systems, it works perfectly with LED strip lights, under-cabinet fixtures, LED modules, and accent lighting. With active power factor correction (PFC > 0.99) and low THD (< 10%), it ensures maximum power efficiency and clean, stable output — ideal for both home and commercial environments.
Easy Installation

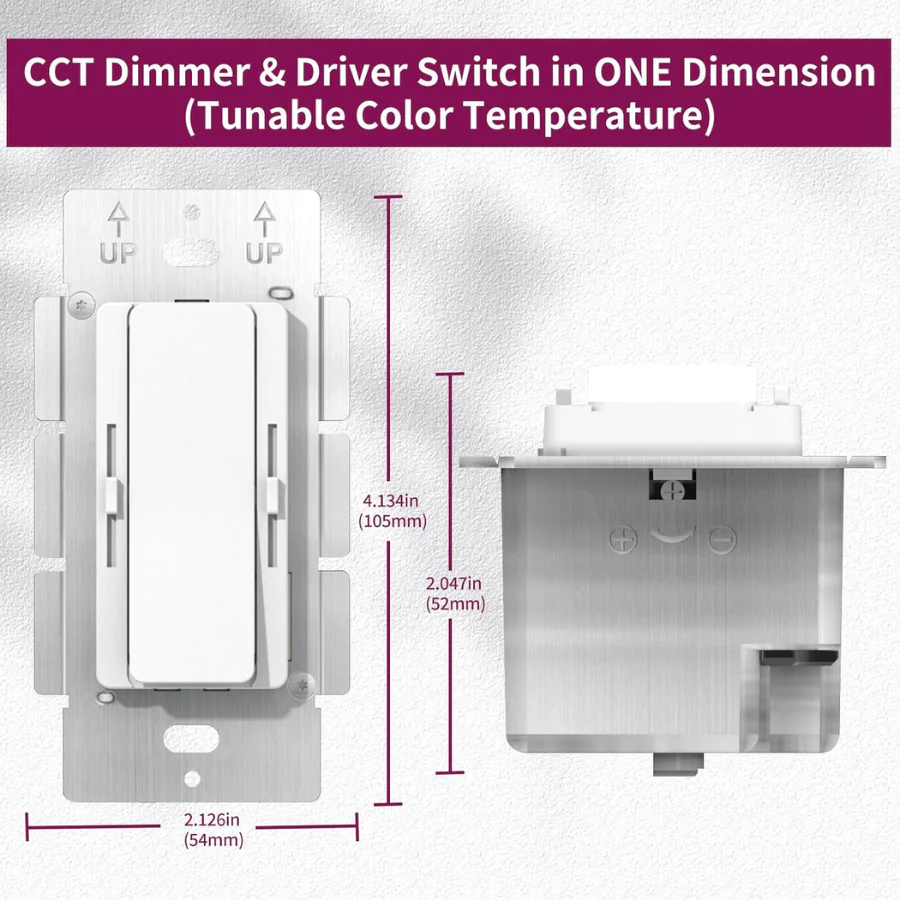

Compact and installer-friendly, the 4.13 × 2.12 × 2.04 inch housing fits neatly into crowded wall boxes.
Whether you’re a contractor, facility manager, or DIY user, setup is fast and straightforward — making it the go-to choice for professional LED dimming projects.

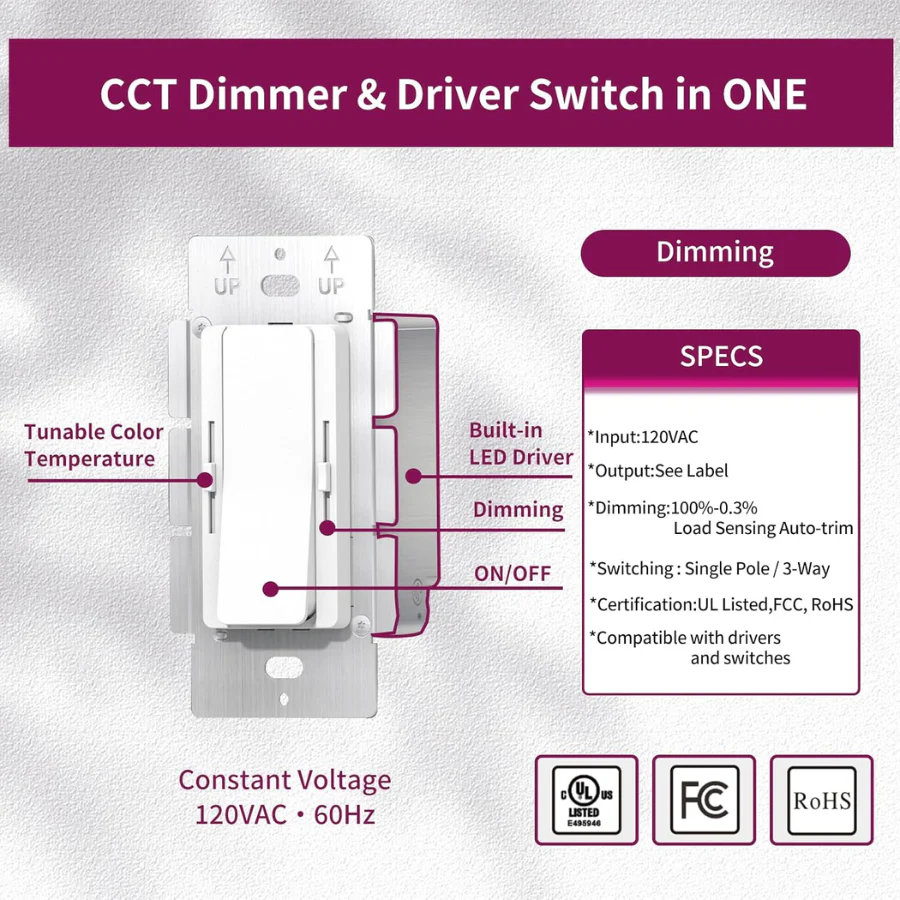

Product Specifications
| Specification | Details |
|---|---|
| Brand | FlipToLed |
| Model | LEP-24096-CCT |
| Product Type | Driver + Dimmer 2-in-1 |
| Operation Mode | ON / OFF, Dimming |
| Current Rating | 4 A |
| Input Voltage | 120 VAC |
| Output Voltage | 24 V DC ± 0.5 V |
| Power Capacity | 96 W |
| Circuit Type | Single-Pole or 3-Way |
| Switch Type | Slide |
| Material | Plastic, Stainless Steel |
| Finish | Glossy White |
| Contact Type | Normally Closed |
| Terminal Type | Screw / Clamp |
| Contact Material | Stainless Steel |
| Certifications | UL, FCC, CE, Class 2 |
| Safety Features | Short Circuit, Overload, Over-Temperature Protection |
| Power Factor (PF) | > 0.99 |
| THD | < 10 % @ 120 V Max |
| Mounting Type | Wall Mount |
| Dimensions (L × W × H) | 4.13 × 2.12 × 2.04 in |
| Applications | LED Strip Lights, Under-Cabinet Lighting, Low-Voltage LED Modules |
Ideal Applications
-
24V LED Strip & Tape Lights
-
Under-Cabinet & Display Lighting
-
Accent & Shelf Lighting
-
Retail & Hospitality Installations
-
Low-Voltage LED Projects
Customer FAQs
1. Is this compatible with all 24V LED lights?
Yes, it supports most 24V DC LED strips, modules, and fixtures (up to 96W total load).
2. Does it replace a separate driver and dimmer?
Exactly — it’s a 2-in-1 driver and dimmer, eliminating the need for external power supplies or dimmer modules.

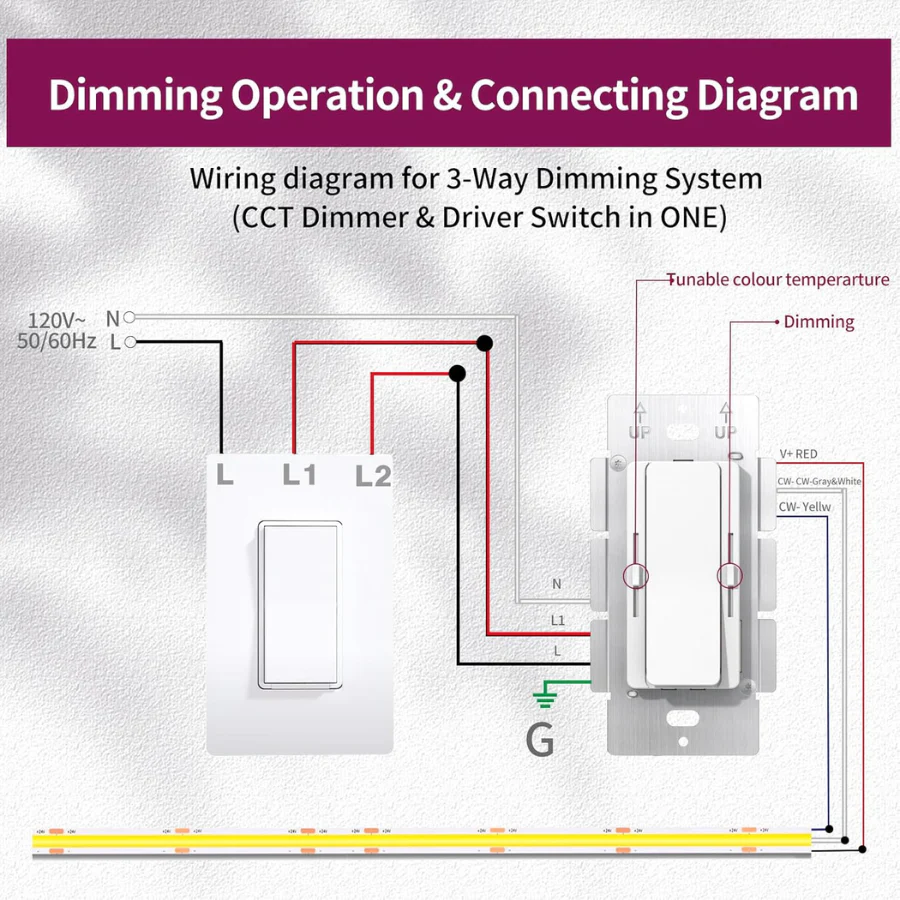

3. Can it be used in a 3-way setup?
Yes, it supports 3-way wiring, but only one dimmer should be used per circuit for stable operation.
4. Will it flicker or hum at low brightness?
No — it uses 20kHz PWM output for smooth, silent, flicker-free dimming from 0.3% to 100%.
5. Is it certified for safety?
Absolutely. It’s UL, FCC, and CE Class 2 certified, with built-in protection against overload, overheating, and short circuits.
